CleanPower Regulator for Game Boy Color
CleanPower Regulator for Game Boy Color
CleanPower Regulator for Game Boy Color
CleanPower Regulator for Game Boy Color
CleanPower Regulator for Game Boy Color
CleanPower Regulator for Game Boy Color
RetroSix

CleanPower Regulator for Game Boy Color

Product SKU: GBC0009
Available:
Only 3 items in stock
3 items in stock
In stock
Pre-order
Out of stock
$14.95
  • Description
Take your original Game Boy Color restoration to the next level with the custom built, ultra-efficient and clean power regulator designed in-house by RetroSix.

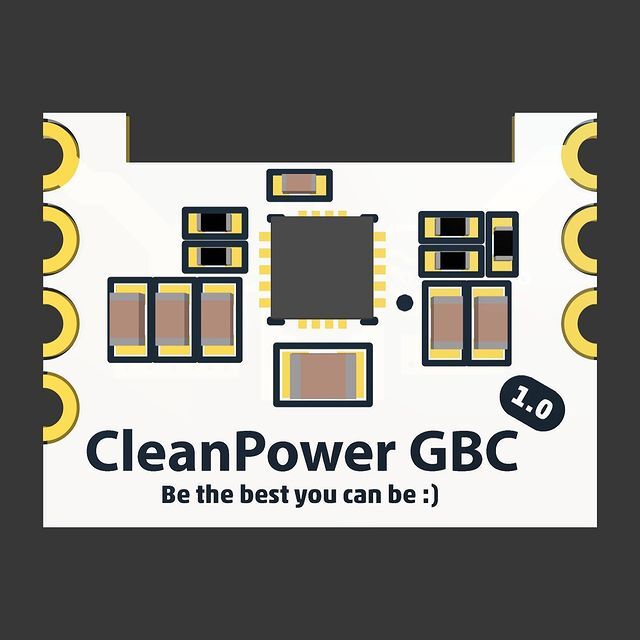

The CleanPower replaces the original power regulator PCB of the Game Boy Color with a modern smooth and health power supply.

With the introduction of IPS mods, audio mods and other power-hungry alterations to the console, the original regulator on the system is hugely over-strained and fails over time or does not power on at all due to the current draw.

The CleanPower board by RetroSix addresses all of those issue, providing a clean, stable and efficient 5V line to the system to keep the lifespan of your console at it's best.

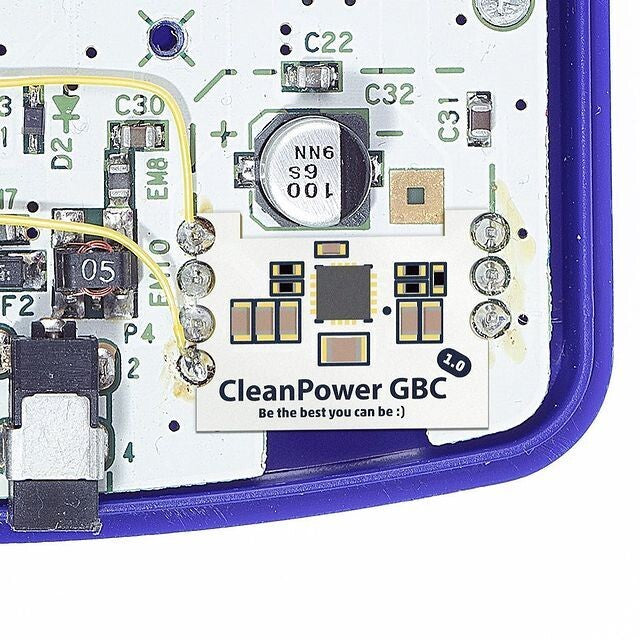

To install, see images. Simply de-solder the old power regulator and solder the CleanPower in the same place as the original regulator.

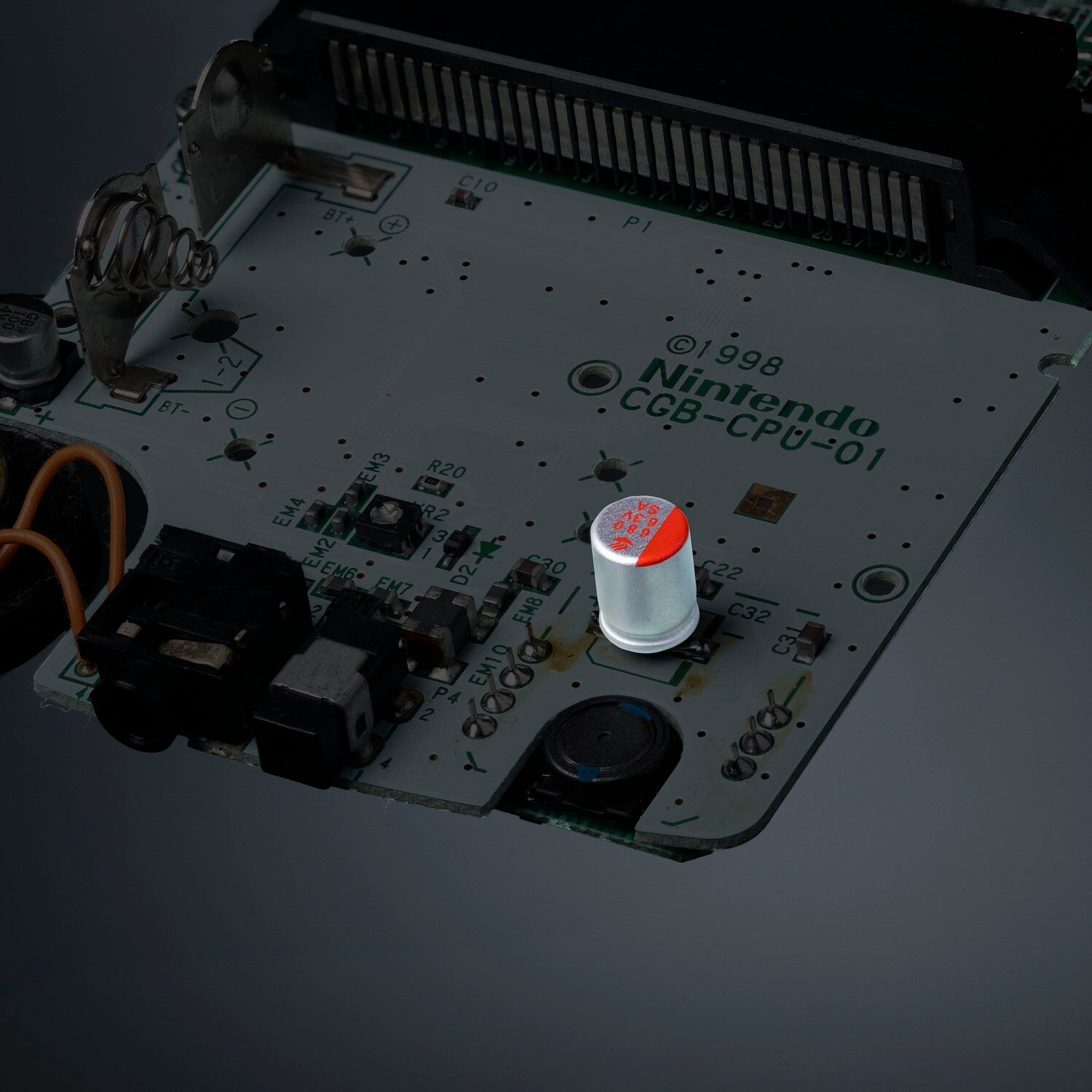

The kit comes with a power capacitor that is optional but highly recommended if you are modding the system. Simply replace the original 100uF capacitor with the larger capacitor provided. This will prevent reboots under high current load like amps and screens.

The input range of the CleanPower on VIN is 2.5V to 12V. This gives modders a much wider range if they want to install 2S lipo kits! If using an original screen keep the old regulator installed and ideally cut the 5V output pin and if using any modern screen remove the old regulator completely.

NOTE: The CleanPower only supports modern screens and does not provide the voltages for the original screens. If you want to use the original screen, simply leave the original regulator in place, and cut the top left pin on the original regulator (when looking at the console from behind and regulator is in bottom right corner). Then the old regulator will supply the LCD voltages, and the CleanPower will supply the bulk system power for the IPS / amp mods.
